4G Communication Bus Passenger Counter with High-Precision Sensor for Real-Time Counting
รายละเอียดสินค้า:
| สถานที่กำเนิด: | เซินเจิ้นประเทศจีน |
| ชื่อแบรนด์: | Vanwin Tracking |
| ได้รับการรับรอง: | CE/FCC/RoHS |
| หมายเลขรุ่น: | โฟล์คสวาเก้น-9024C |
การชำระเงิน:
| จำนวนสั่งซื้อขั้นต่ำ: | 1 ชิ้น |
|---|---|
| ราคา: | negotiated |
| รายละเอียดการบรรจุ: | แพคเกจกล่องกระดาษที่เป็นกลางตามค่าเริ่มต้น ปรับแต่งแพ็คเกจได้หากคำสั่งซื้อถึง 300 ชิ้น สามารถสั่งพิม |
| เวลาการส่งมอบ: | 2-3 วันสำหรับตัวอย่าง 15-30 วันสำหรับคำสั่งซื้อขนาดใหญ่ |
| เงื่อนไขการชำระเงิน: | T/T หรือ Western Union หรือ Paypal |
| สามารถในการผลิต: | 50,000pcs ต่อเดือน |
|
ข้อมูลรายละเอียด |
|||
| พาวเวอร์ซัพพลาย: | ดีซี8V-36V | อุณหภูมิในการจัดเก็บ: | -40 ℃ - 85 ℃ |
|---|---|---|---|
| เซ็นเซอร์รับภาพ: | 1/3CMOS | ความละเอียดในแนวนอน: | สายทีวี 700 สาย |
| ปัจจุบันทำงาน: | 370MA≤ | อุณหภูมิในการทำงาน: | -20~+70℃ |
รายละเอียดสินค้า

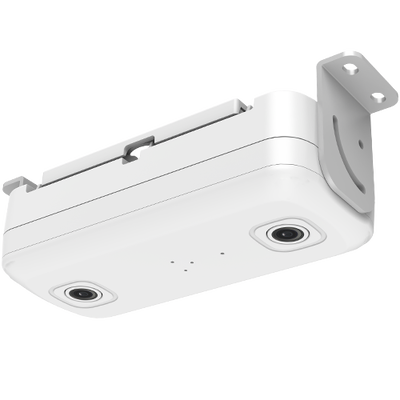

4G IPC People Counting Camera Automatic Counter Passenger Bus Doors People Counter

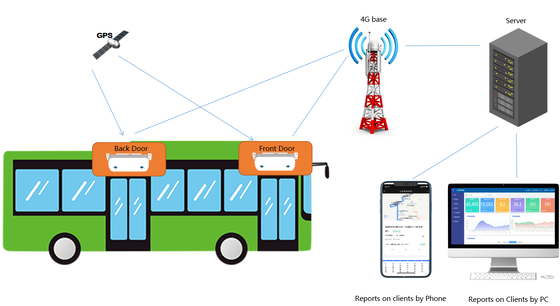

Vanwin bus passenger counter is a new intelligent bus passenger flow statistics and analysis device that integrates functions such as video capture, video processing, 4G communication, and GPS/BD positioning.
It uploads real-time statistical analysis passenger flow data to the backend bus passenger flow statistical analysis platform. The platform has a rich variety of data report types and detailed data comparison. Managers can view the passenger flow data of each vehicle, each route, and each station in real time through the report system. At the same time, they can also view multi-dimensional data such as year, month, Sunday, hour, minute, and second, as well as comparative data of different time periods at any time.
Bus People Counting Camera Key Features
- Real-Time Counting: Utilizes advanced infrared or pressure sensor technology to provide real-time passenger counts, ensuring accurate data collection for every trip.
- User-Friendly Interface: Equipped with an intuitive display that allows drivers and operators to easily view current passenger numbers and historical data.
- Data Reporting: Generates detailed reports that can be accessed via a connected app or web interface, enabling transport planners to analyze trends and optimize routes.
- Durable Design: Built to withstand the rigors of daily use, the device is weather-resistant and designed for easy installation on various bus models.
- Integration Capabilities: Seamlessly integrates with existing transport management systems, allowing for centralized monitoring and data management.
- Energy Efficient: Operates on low power consumption, ensuring long-lasting performance and minimal maintenance requirements.
People Counting Camera Benefits
- Improved Safety: Helps prevent overcrowding by providing accurate passenger counts, enhancing the safety of both passengers and drivers.
- Operational Efficiency: Enables better resource allocation and route planning, leading to increased efficiency and reduced operational costs.
- Enhanced Customer Experience: By ensuring buses are not overcrowded, passengers enjoy a more comfortable and enjoyable travel experience.
People Counting Camera Applications
Ideal for public transportation systems, private bus companies, and shuttle services looking to enhance their passenger management processes.
Bus People Counting Camera Specifications
| Specifications | Parameter |
|---|---|
| Image sensor | 1/3CMOS |
| Video format | PAL/NTSC(optional) |
| Horizontal resolution | 700 TV Lines |
| Image output | Simultaneous sampling output |
| Lens spacing | 5cm(12cm optional) |
| Lens parameters | 960*576 pixels, 2.8 mm (2.8mm/3.6mm/4mm/6 mm optional) |
| White balance | Automatic |
| Shutter | 1/50-1/80000(seconds) 1/60-1/80000(seconds) |
| Frame rate | 25 (frames/ second) |
| Video output interface | Composite video output,75Ω 1Vp-p BNC |
| Gain | automatic gain control |
| Signal to noise ratio | >48db |
| Power | 5-24Vvoltage input |
| Working current | 370MA≤ |
| Size | 133(W)mmx50(H)mmx59.65(L)mm(L×W×H) |
| Weight | about 0.35KG (single camera) |
| Operating temperature range | -20~+70℃ |
| Relative humidity | 10%～90%non-condensing |
| Heat dissipation | Passive structural heat dissipation |
Bus Passenger Counter FAQ
1. What is a Bus Passenger Counter?
A Bus Passenger Counter is a device that accurately counts the number of passengers boarding and alighting from a bus, providing real-time data for better operational management.
2. How does the Bus Passenger Counter work?
It typically uses infrared sensors or pressure sensors to detect and count passengers as they enter or exit the bus. The collected data is displayed in real-time and can be stored for later analysis.
3. Is it easy to install?
Yes, the Bus Passenger Counter is designed for easy installation on various bus models. Most units come with user-friendly mounting options and detailed installation instructions.
4. Can the device be integrated with existing systems?
Absolutely! The Bus Passenger Counter can seamlessly integrate with existing transport management systems, allowing for centralized monitoring and data analysis.
5. What kind of data can I expect from the Bus Passenger Counter?
You can expect real-time passenger counts, historical data, and detailed reports that show trends in passenger numbers over time, which can help in route optimization.
6. Is the device durable?
Yes, the Bus Passenger Counter is built to withstand harsh conditions. It is weather-resistant and designed for long-term use in a busy transportation environment.
7. How does it improve safety?
By providing accurate passenger counts, the device helps prevent overcrowding on buses, thereby ensuring a safer travel environment for both passengers and drivers.
8. What are the maintenance requirements?
The Bus Passenger Counter requires minimal maintenance, primarily periodic cleaning and software updates to ensure optimal performance.
9. Is it energy-efficient?
Yes, the device operates on low power consumption, making it energy-efficient and cost-effective over time.
10. Who can benefit from using a Bus Passenger Counter?
Public transportation authorities, private bus companies, and shuttle services can all benefit from implementing a Bus Passenger Counter to improve their operational efficiency and passenger experience.
